Published:2009/6/25 3:25:00 Author:Jessie | From:SeekIC

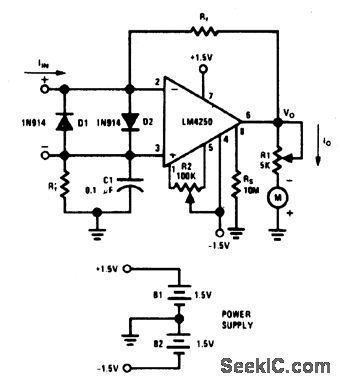

The complete meter amplifier is a differen-tial current-to-voltage converter with input pro-tection, zeroing and full scale adjust provisions, and input resistor balancing for minimum offset voltage.
