NOISE_FIGURE_MEASUREMENT_OF_R_F_TUBES

Published:2009/7/17 2:04:00 Author:Jessie | From:SeekIC

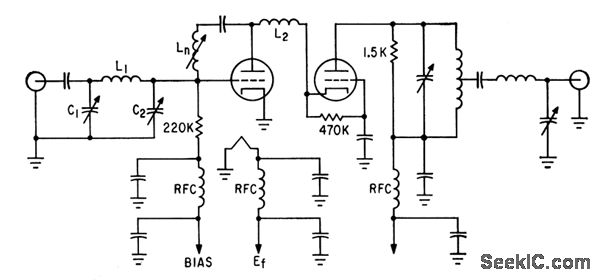

Standardized EIA Committee circuit measures noise-figure of cascode r-f amplifiers with 95% repeatability Jig circuit for ，tube under lest has 200-Mc center frequency and 10-Mc bandwidth，-T .E． Gausman, Standardizing Noise-Figure Measurement, Electronics,36:1,p 124－129.
