OP_AMP_ERROR_CURRENT_MEASUREMENT_CIRCUIT

Published:2009/7/13 2:07:00 Author:May | From:SeekIC

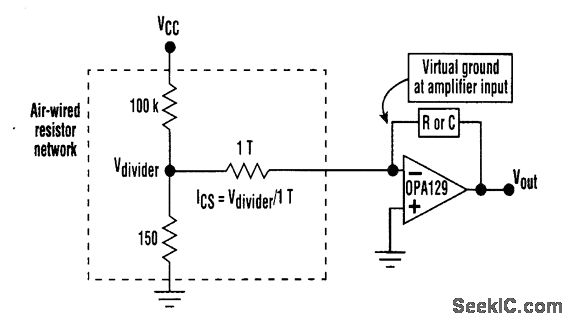

Using an air-wired resistor-divider network, designers can make a precision femtoampere source that can inject a known error current into the amplifier to check the circuit's accuracy.
