On_leakage_current_tests

Published:2009/7/23 21:52:00 Author:Jessie | From:SeekIC

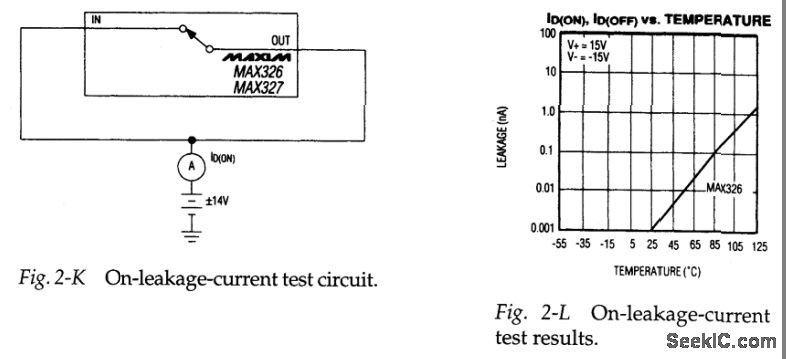

Figure 2-K shows a basic test circuit for measuring on-leakage-current I D(ON) for the MAX326/27. Figure 2-L shows how I D(ON) changes with temperature.
