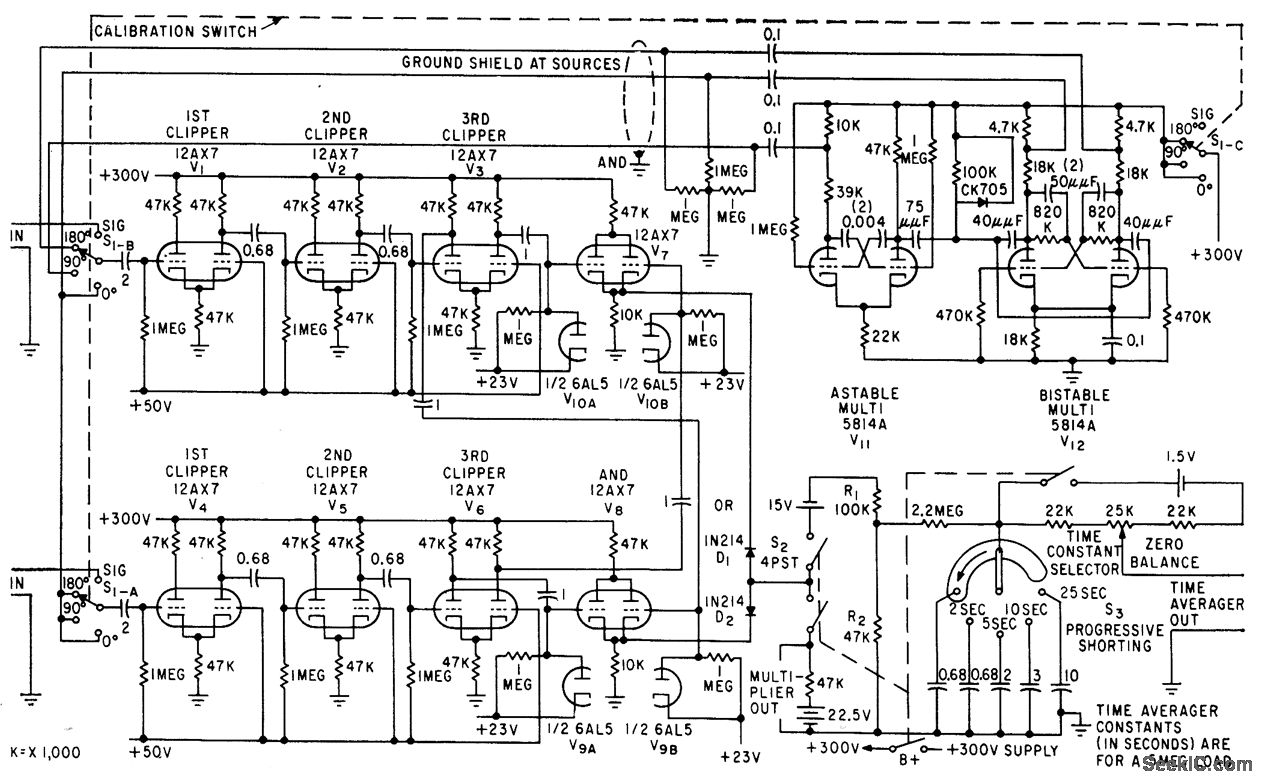

POLARITY_COINCIDENCE_MULTIPLIER

Published:2009/7/15 3:43:00 Author:Jessie | From:SeekIC

Detects weak low-frequency signals in high-noise background, with output indicating presence and phase shift of signals received at dual inputs. Accuracy is within 1% for inputs of 1 to 500 cps.-B. M. Rosenheck, Detecting Signals by Polarity Coincidence, Electronics, 33:5, p 67-69.
