POWER_FAILURE_DETECTOR

Published:2009/6/30 3:15:00 Author:May | From:SeekIC

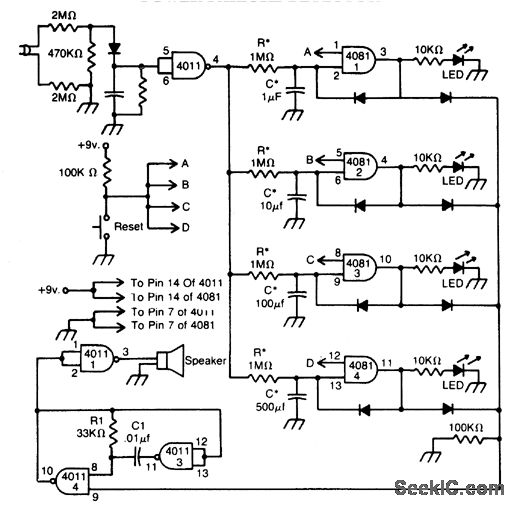

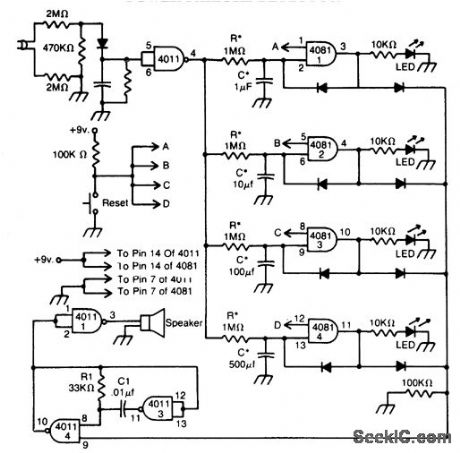

This circuit indicates that a power outage occured for with the values given for R* and C*. After a power failure, pushing the Reset button.
