PULSE_AND_D_C_MONITOR

Published:2009/7/9 23:42:00 Author:May | From:SeekIC

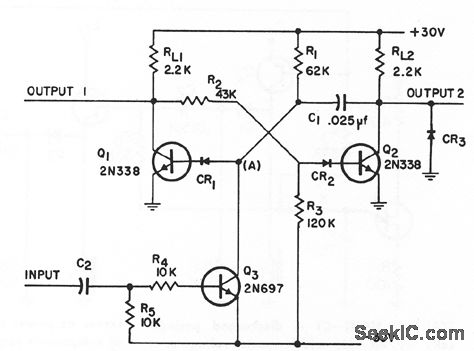

Indicates presence of continuous train of pulses, absence of one or more pulses in train, and dropout of d-c level beyond predetermined time interval. Uses controlled monostable mvbr. With d-c inputs, C2 is shorted. With values shown for R1 and C1, output occurs 1.07 millisec after last pulse.-Pulse and DC Monitor Circuit, Electronic Circuit Design Handbook, Mactier Pub. Corp., N.Y., p 201.
