PULSE_HEIGHT_TO_WIDTH_CONVERTER

Published:2009/7/16 2:02:00 Author:Jessie | From:SeekIC

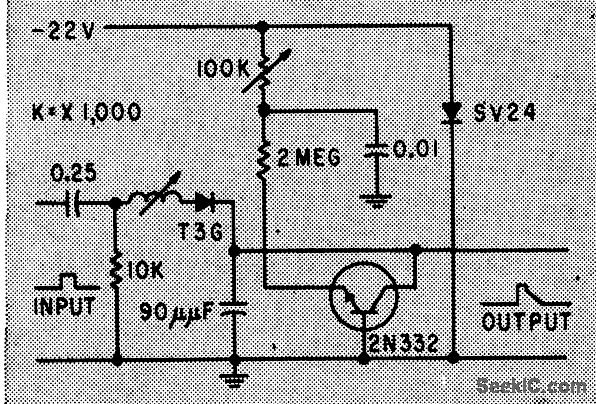

Converts 0 to 2-V pulse to gate for pulse height to pulse width conversion. Gate width, directly proportional to data pulse amplitude, is applied to dock circuits.-W. W. Grannemann et al., Pulse-Height-to-Digital Signal Converter, Electronics, 33:2, p 58-60.
