Rapid heart rate meter (CD4518, CD4046, CD4511)

Published:2013/1/24 1:38:00 Author:Ecco | Keyword: Rapid , heart rate , meter | From:SeekIC

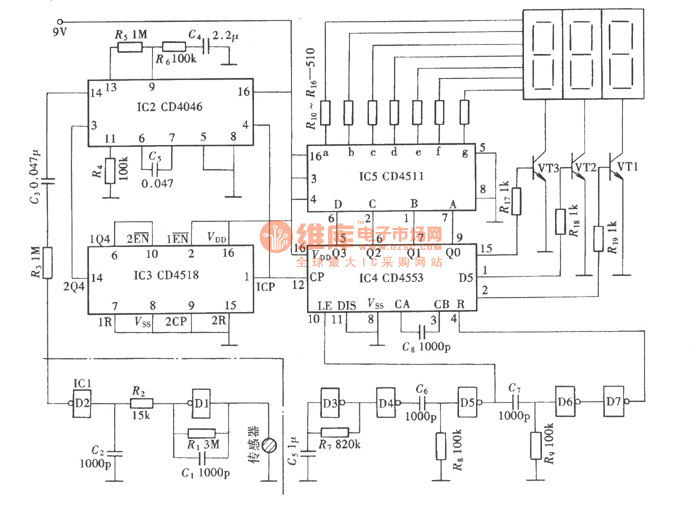

Heart rate meter and frequency meter are actually belong to the same class of measuring instruments, but heart rate meter's time the gate is just 1min rather than 1s. For A measuring instrument, 1 min measuring time is not only a long time, but it is difficult to ensure the accuracy of measurement. Therefore it must transform the measurement to match the rapid and accurate requirements. The figure shows a heart rate measuring instrument circuit, and it is consistent with the rapid and accurate requirements.
