SCR_TIMER

Published:2009/7/11 0:58:00 Author:May | From:SeekIC

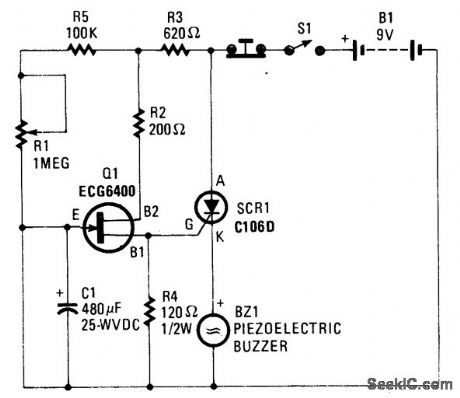

Depending on the R1 (adjustable) C1 time con-stant, when C1 charges up to a certain level, Q1 conducts, triggers SCR1, and sounds BZ1. A push-button resets the circuit.
