SIMPLE_DUTY_CYCLE_METER

Published:2009/7/10 2:41:00 Author:May | From:SeekIC

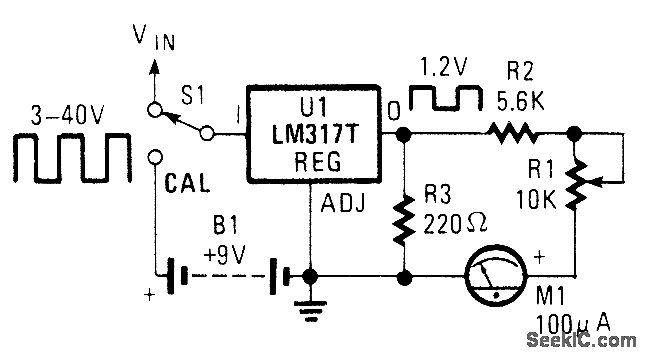

Using an LM317T as a precision clipper, this displays the duty cycle of a pulse train from 0 to 100% on a standard 100-mA analog panel meter. This circuit will work up to about 50 kHz.
