SIMPLE_POLARITY_INDICATOR

Published:2009/7/16 4:00:00 Author:Jessie | From:SeekIC

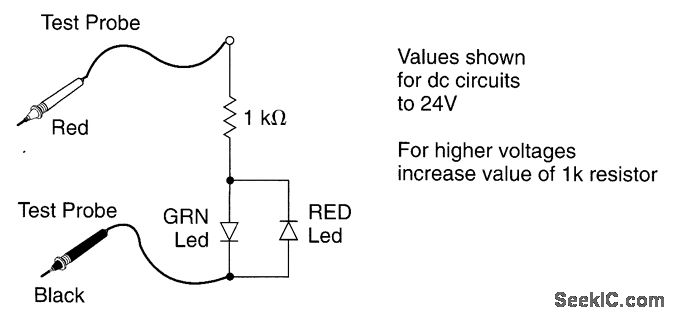

Use this circuit to determine the polarity of low-voltage dc circuits. If the green LED lights, the red probe is positive. If the red lights, the red probe is negative.
