SPEED_TRIPLING_COUNTER_DRIVE

Published:2009/7/13 20:51:00 Author:May | From:SeekIC

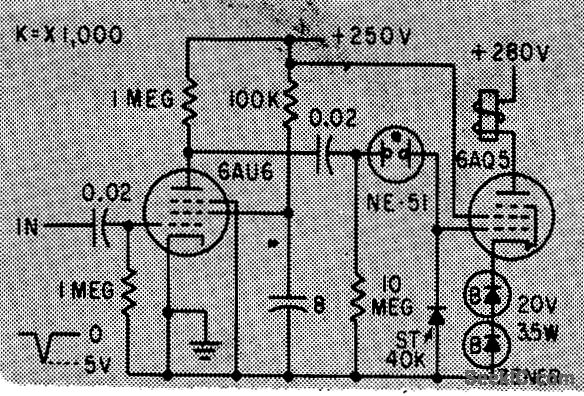

Increased speed of 25-cps electromechanical counter to 75 cps without affecting accuracy of count.Circuit circuit arrangement simplifies power supply requirements. Zener diodes eliminate need for bias supply.-R.L.lves, Circuit Modifications for Boosting Counter Speed, Electronics, 33:7, p112-114.
