STEREO_BALANCE_METER_1

Published:2009/6/25 21:47:00 Author:May | From:SeekIC

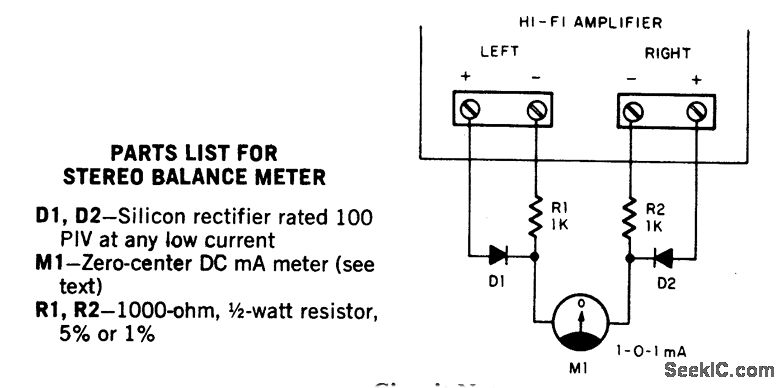

Play any stereo disc or tape and then set the amplifier to mono. Adjust left and right channel balance until meter M1 indicates zero; then the left and right output level are identical.
