Self Quality Detector Circuit Diagram

Published:2011/6/15 8:00:00 Author:Vicky | Keyword: Self Quality Detector | From:SeekIC

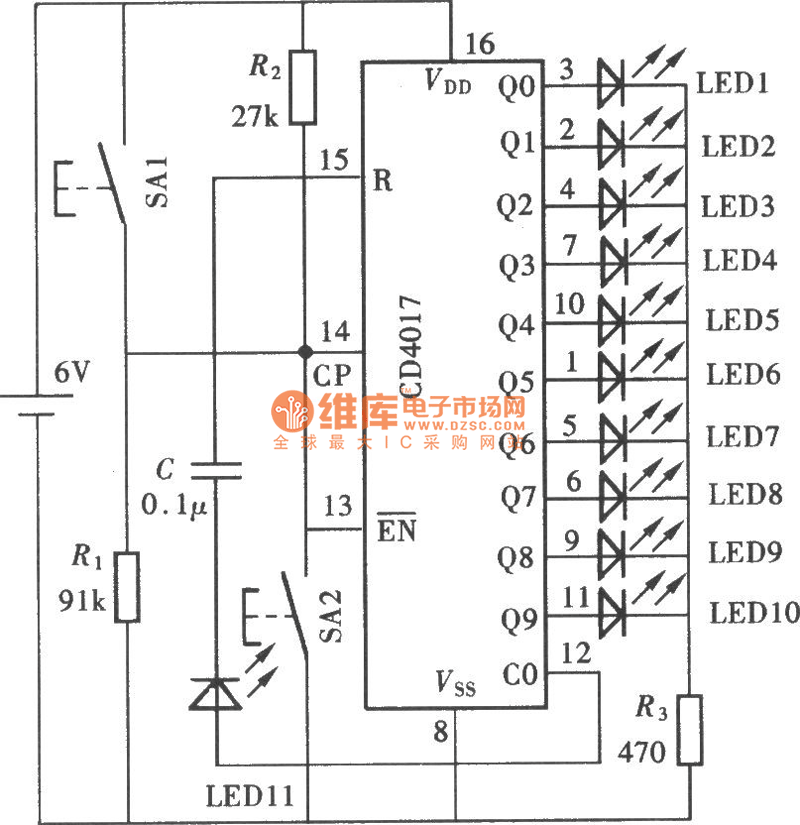

CD4017 is one of the most commonly used digital integrated circuits among all kinds of practical electronic circuits. The following is a simple Quality Detector and it can test the following details: first, whether the output performance of the ten output ends, Q0~Q9, is good or not; second, whether the input performance of clock pulse input end is good; third, whether the reset function of the reset terminal R works well; forth, whether the carry pulse output of the carry pulse output end CO works well.
