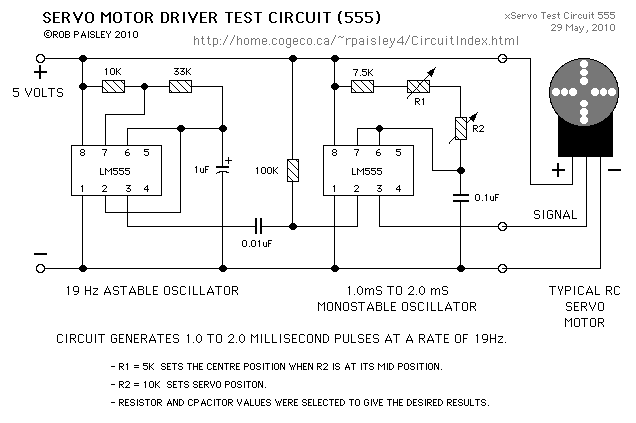

Servo Motor Test Circuit (LM555)

Published:2013/6/13 1:40:00 Author:muriel | Keyword: Servo Motor, Test Circuit , LM555 | From:SeekIC
