Short circuit tester circuit diagram

Published:2011/4/29 3:57:00 Author:Ecco | Keyword: Short circuit , tester | From:SeekIC

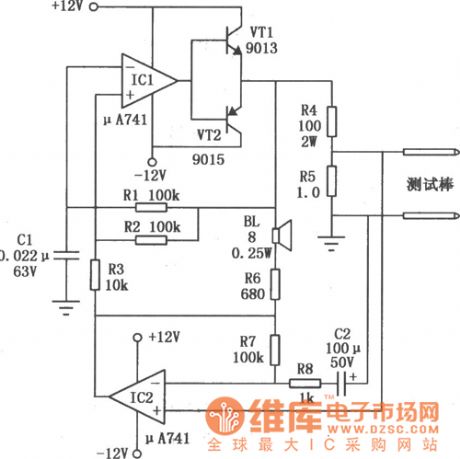

Short circuit tester circuit is shown as the chart, it can easily detect the short circuit after component soldering on cable or printed circuit board. When the testing stick closes to the short circuit point, the pitch will increase with it.
