Single transistor Metal Detector circuit

Published:2012/9/13 21:12:00 Author:Ecco | Keyword: Single transistor, Metal Detector | From:SeekIC

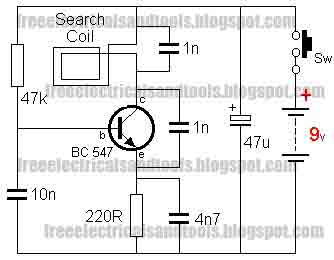

The circuit is an oscillator and the way it keeps oscillating is due to positive feedback. This is the case with all oscillators and the component that provides the feedback is the 1n capacitor between the collector and emitter of the transistor. It may seem unusual that the transistor can be turned on via the emitter to keep it oscillating, but in fact it does not matter if the emitter or base receives a signal as the important factor is THE VOLTAGE DIFFERENCE between these two terminals. Source: NEXT.GR
