Three Digit Capacitance Circuit Diagram

Published:2011/6/9 4:29:00 Author:Vicky | Keyword: Three Digit Capacitance, | From:SeekIC

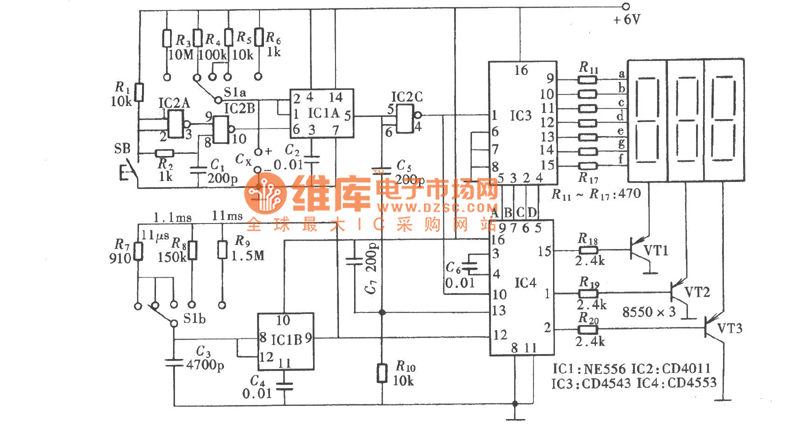

Three digit capacitance as shown in the picture is composed of basic pulse generator, gated circuit, control gate ,counter and decoding display. The compositionand relation ofthe measuring range of every capacitancerating :
