0005_REGULATION

Published:2009/7/15 20:44:00 Author:Jessie | From:SeekIC

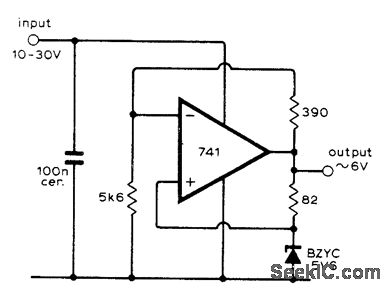

Simple opamp circuit changes less than 1 mV at output for input range of 10-30 V. Circuit is easily modified to give other output voltages, either positive or negative.-M. Walne, High Performance Reference, Wireless World, May 1974, p 123.
