0_10_V_TWO_ZENER

Published:2009/7/20 6:02:00 Author:Jessie | From:SeekIC

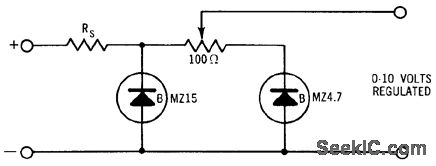

Simple arrangement provides source of well-regulated adjustable voltage. First zener diode tends to act as pre-regulator, improving dynamic regulation.- Zener Diode Handbook, International Rectifier Corp., 1960, p 54.
