12_V_LOW_RIPPLE

Published:2009/7/16 21:35:00 Author:Jessie | From:SeekIC

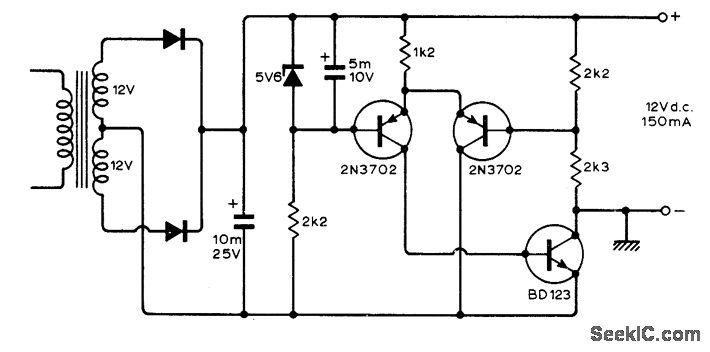

Three-transistor feedback circuit gives low-cost voltage stabilizer in which ripple is low and regulated output is very little less than unstabilized input voltage.-R. H. Pearson, Novel 5-Watt Class A Amplifier Uses Three-Transistor Feedback Circuit, Wireless World, March 1974, p 18.
