12_V_preset_output_controller_with_power_monitor

Published:2009/7/24 3:21:00 Author:Jessie | From:SeekIC

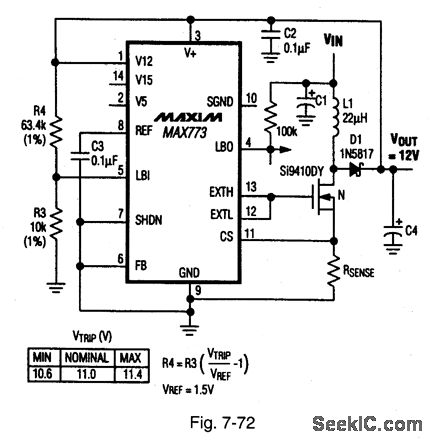

Figure 7-72 shows a MAX773 connected to provide 12-V output. with a power-monitor(or low battery )function．See Fig，7-68 for component suppliers. MAXIMNEW RELEASES DATA Book, 1995, P．4-151．
