12_V_preset_output_high_efficiency_controller_boot_strapped

Published:2009/7/24 3:12:00 Author:Jessie | From:SeekIC

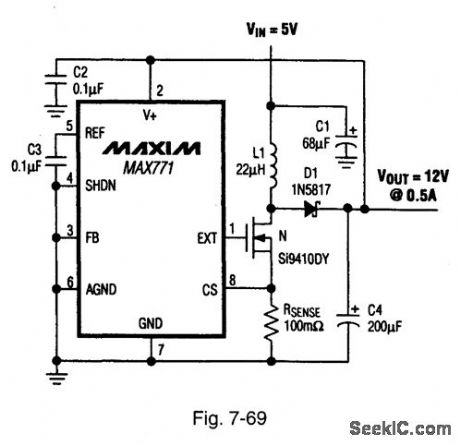

Figure 7-69 shows a MAX771 connected to provide 12-V output at 0.5 A, with a 5-V input．See Fig．7-68 for component suppliers. MAXIM NEW RELEASES DATA Book 1995, P.4-150.
