15_V_AT_200mA

Published:2009/7/19 20:57:00 Author:Jessie | From:SeekIC

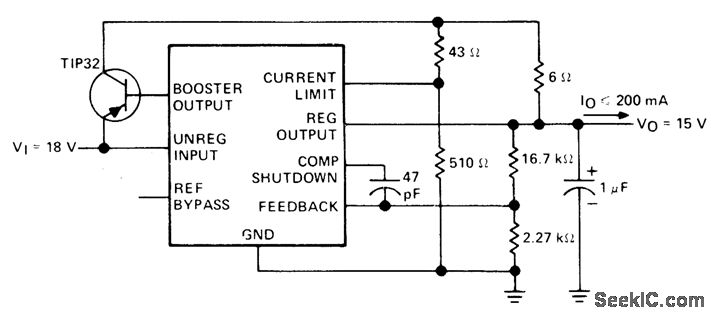

Linear regulator using Texas Instruments SN52105, SN72305, or SN72376 is connected for foldback current limiting. Regulators are interchangeable with LM105, LM305, and LM376 respectively. Load regulation is 0.1%, and input regulation is 0.1%/V.- The Linear and Interface Circuits Data Book for De-sign Engineers, Texas Instruments, Dallas, TX, 1973, p 5-9.
