2_KC_COLD_CATHODE_COUNT_RATE_CIRCUIT

Published:2009/7/19 22:26:00 Author:Jessie | From:SeekIC

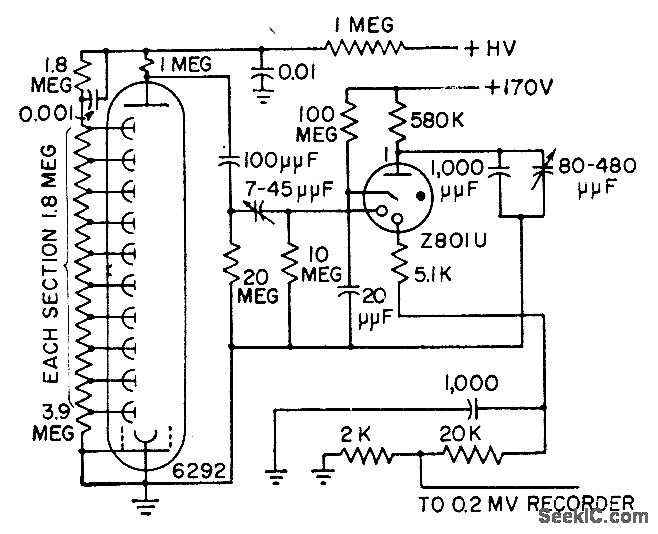

Uses triode having separate cold-cathode diode that produces glow discharge to eliminate trigger-cathode gap of triode section. This eliminates photosensitivity shown by most cold-cathode devices. Maximum operating speed is 2,000 counts per second.-M. H.Goosey, Designing Cold-Cathode Tube Circuits, Electronics, 31:3, p 101-108.
