2_TO_5_CELL_LITHIUM_BATTERY_CHARGER

Published:2009/6/19 3:06:00 Author:May | From:SeekIC

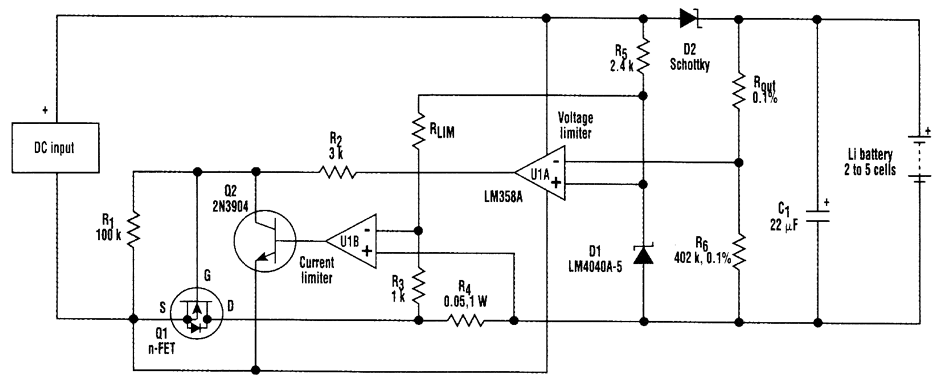

A more generally applicable circuit-design concept for recharging lithium batteries could easily accommodate different cell types and various numbers of cells. That's because both the charger out-put-voltage set point and current limit, or maximum charging current, can be adjusted by simply changing a resistor.
