34_V_RADIATION_HARD_ENED

Published:2009/7/15 21:20:00 Author:Jessie | From:SeekIC

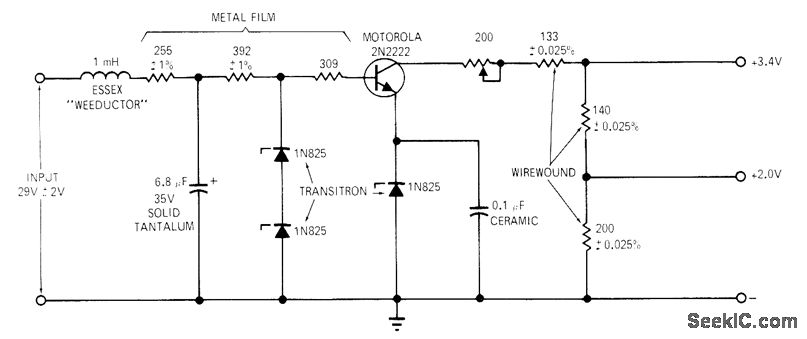

Two-stage regulator is combined with special filter design that helps keep output voltage free of gamma-produced transients and RFI. Voltage divider using wirewound resistors provides 2-V output. Gamma radiation of 1,000,000 rads caused only 0.3% change in output voltages. Article covers procedure for designing and testing circuits that are to be operated in high-radiation environment.-A. J. Sofia, Designing a Radiation-Stable Voltage Reference, EDN Magazine, Sept. 15, 1970, p 39-41.
