5000_V_D_C_FROM_26_V_D_C

Published:2009/7/21 5:56:00 Author:Jessie | From:SeekIC

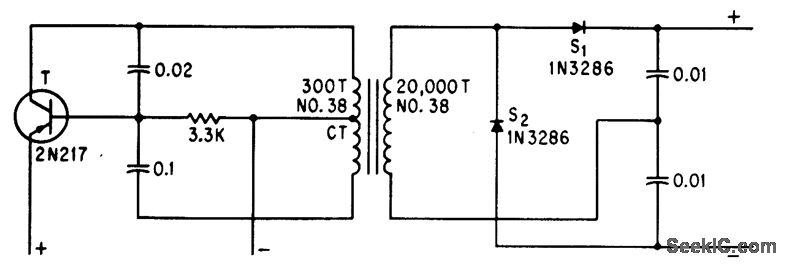

Uses transistor as sinusoidal oscillator. Voltage-doubling capacitors keep ripple below 0.01%.-R. D. Morrow, Inexpensive Converter Gives 5,000 Volts D-C, Electronics, 35:28, p 54.
