5_A_dc_dc_step_down_converter

Published:2009/7/25 1:07:00 Author:Jessie | From:SeekIC

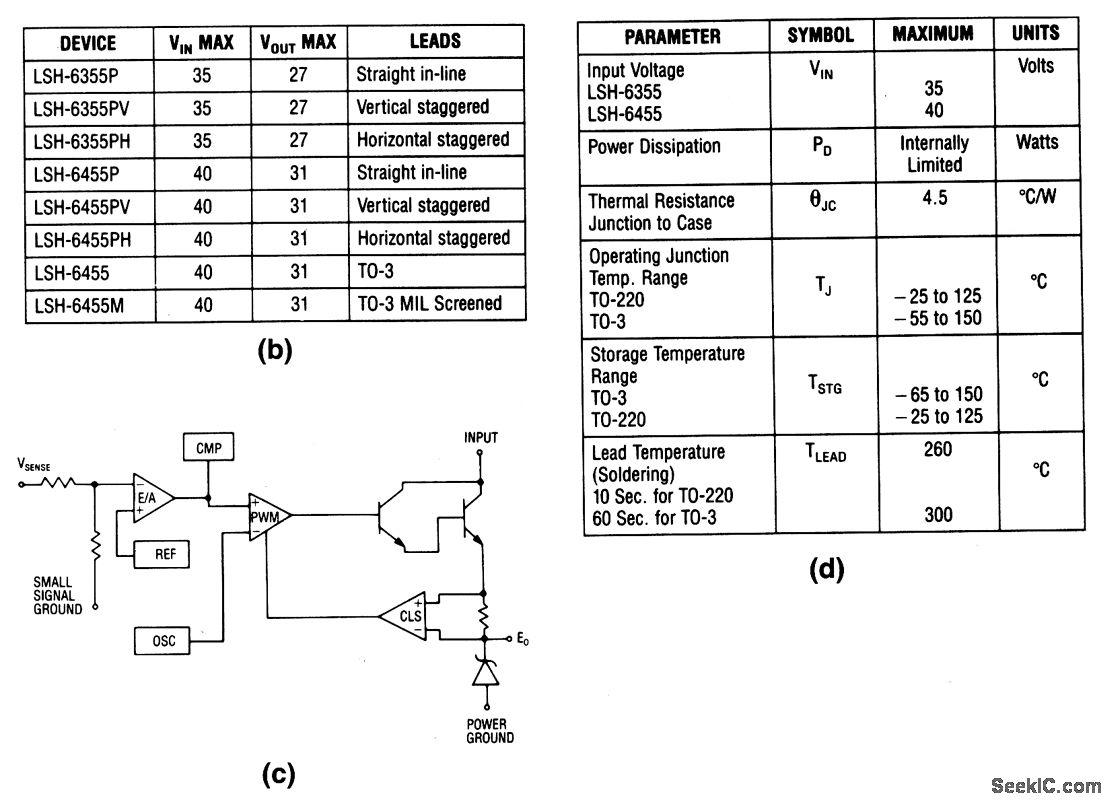

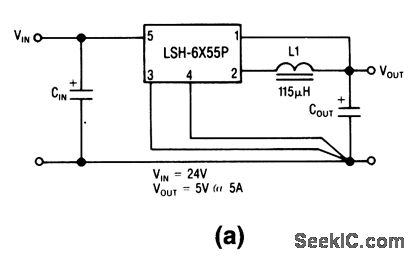

The LSH switching-regulator ICs contain most elements necessary for converter operation, as shown in Fig. 4-5C. Figure 4-5B shows the output voltage and characteristics for various part numbers. Figure 4-5D shows the absolute maximum ratings. Simply add a choke, catch diode, and two capacitors to the IC for a complete converter.
