7_23V_AT_12_2A

Published:2009/7/19 22:12:00 Author:Jessie | From:SeekIC

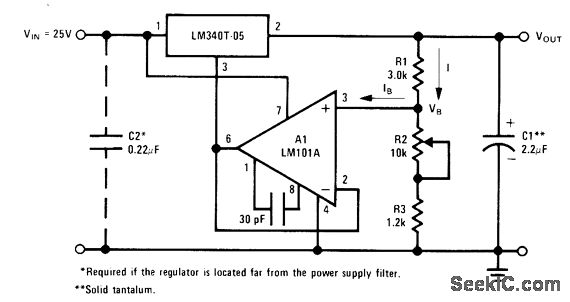

Ground terminal of LM340T-05 regulator is raised by amount equal to voltage applied to noninverting (+) input of opamp, to give output voltage set by R2 in resistive divider. Short-circuit protection and thermal shutdown are provided overfull output range.- Linear Applications, Vol. 2, National Semiconductor, Santa Clara, CA, 1976, AN-103, p6-7.
