8080A_CPU_module_to_8255A_interface

Published:2009/7/19 22:32:00 Author:Jessie | From:SeekIC

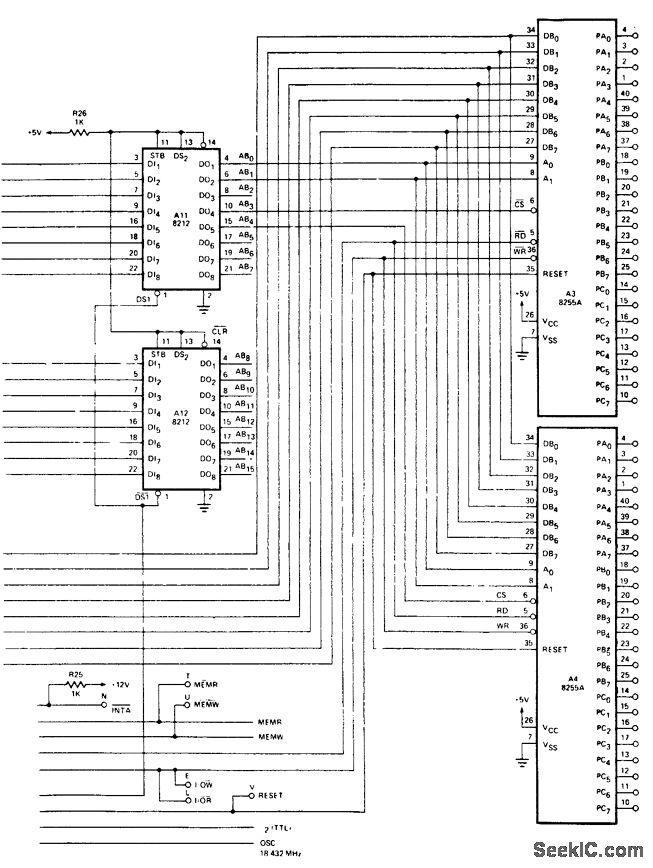

8080A CPU module to 8255A interface. This circuit comes complete as the Intel SDK 80 kit board. All of the 8255A interface lines are directly driven by the CPU (courtesy Intel Corporation).
