ADJUSTABLE_OUTPUT_REGULATOR

Published:2009/6/28 21:57:00 Author:May | From:SeekIC

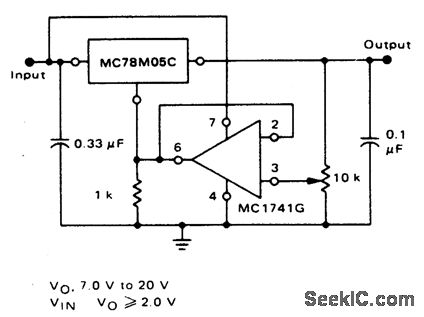

The addition of an operational amplifier allows adjustment to higher or intermediate values while retaining regulation characteristics; The minimum voltage obtainable with this arrangement is 2.0 volts greater than the regulator voltage.
