ADJUSTABLE_POWER_SUPPLY

Published:2009/6/24 2:53:00 Author:Jessie | From:SeekIC

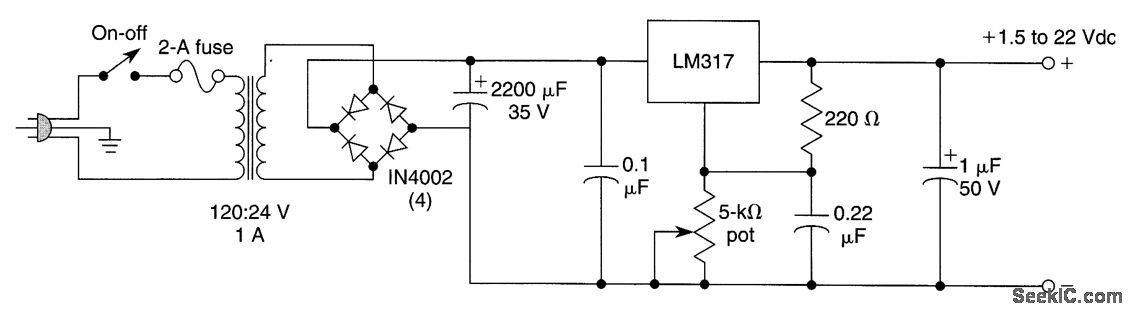

Using an LM317, this supply delivers 1.25 to 22 Vdc for various purposes. The LM317 should be heatsinked. This supply will deliver 600-mA output current.
