ALPHANUMERIC_CHARACTER_GENERATOR

Published:2009/7/16 21:55:00 Author:Jessie | From:SeekIC

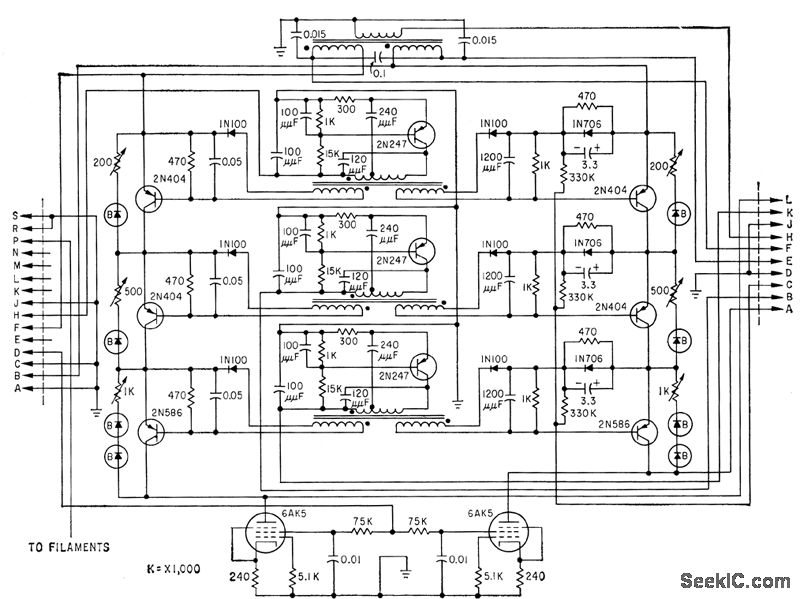

Used to Provide readout on cathode-ray display as output of digital computer. Horizon-tal decoding and deflection circuits are shown.240 Vertical circuitry is essentially identical.-E.D. Jones, Character Generator for Digital Computers,Electronics,33:7, p 117-120.
