ARITHMETIC_BINARY

Published:2009/7/19 22:03:00 Author:Jessie | From:SeekIC

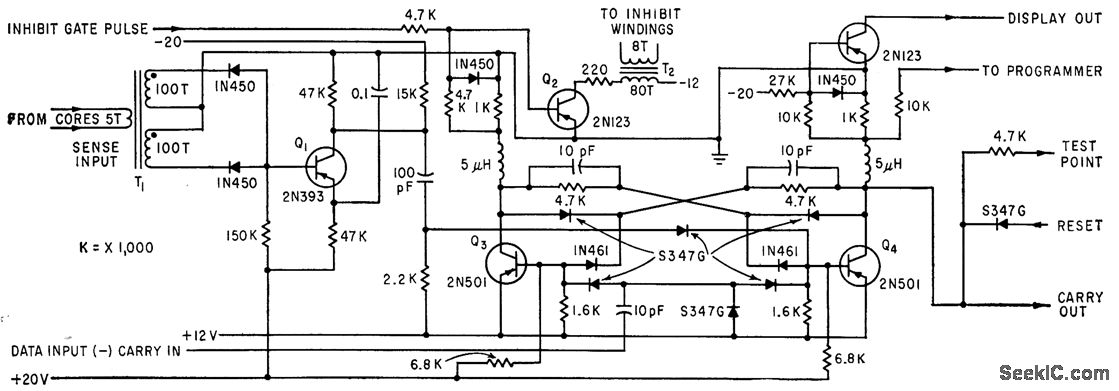

Uses 2N501 series-triggered transistors, catching diodes, and peaking coils operating at date input rate of about 15 Mc, in neutron time-of-flight and pulsed-neutron measurements.-E. J. Wade, Digital Instrumentation for Nuclear Research Tests, Electronics, 33:43, p 68-71.
