A simple without transformer converter circuit

Published:2011/7/16 7:24:00 Author:Fiona | Keyword: without transformer, converter | From:SeekIC

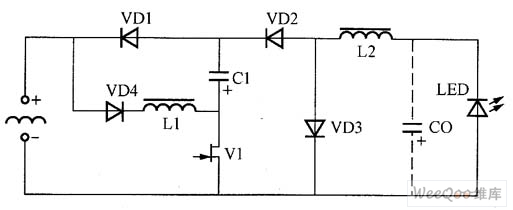

A simple without transformer converter circuit is shown as above.Input rise and fallvoltage level circuit is composed of VD4,L1,C1,VD1 in series,the output reduction voltage level is composed of the L2,VD3,VD2,CO.The two levels of conversion level common using power is decided by MOSFI tube's V1.Input rise and fallvoltage level circuit works in Intermittent mode(DCM); when the output level works,the working is in continuous mode (CCM).
