Published:2013/3/20 1:52:00 Author:Ecco | Keyword: Adjustable , Output Regulator , Op-Amp | From:SeekIC

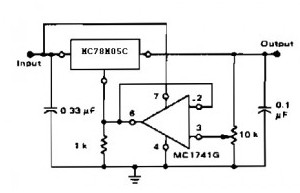

With adjustable voltage regulator the circuit voltage can be obtained varies from 7 to 20 VDC. This circuit requires a voltage input> = 20VDC
Circuit NotesThe addition of an op amp MC1741 allows adjustment to higher or intermediate values while retaining regulation characteristics. The minimum voltage obtainable with this arrangement is 2.0 volts higher than the regulator voltage.
