Automatic Repeater

Published:2012/11/23 0:44:00 Author:muriel | Keyword: Automatic Repeater | From:SeekIC

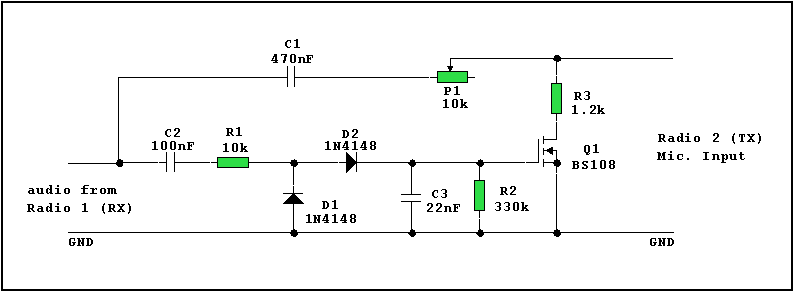

This circuit will be of interest to the radio amateur and anyone posessing two radios, (one of which must be able to transmit i.e. a transceiver). It is a self powered (audio derived) repeater circuit for receiving a signal and re-transmitting it via the other radio.
