BASIC_BISTABLE_MODULE

Published:2009/7/24 1:57:00 Author:Jessie | From:SeekIC

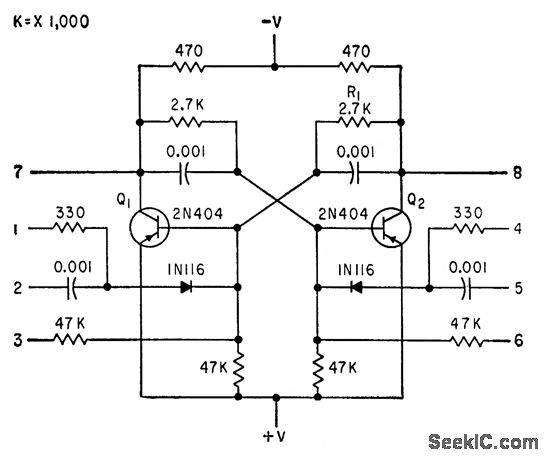

Can be used as flip-flop by connecting 1 to 7 and 4 to 8, than using 2 and 5 as inputs and 7 and 8 as outputs. Becomes binary counter stage when 2 and 5 are tied together for same arrangement. Other combinations of connections give one-shot mvbr, pulse generator, shift register, square-wave generator, or flip-flop.-A. I. Perlin, Selective Calling for Data Link Systems, Electronics, 33:18, p 108-110.
