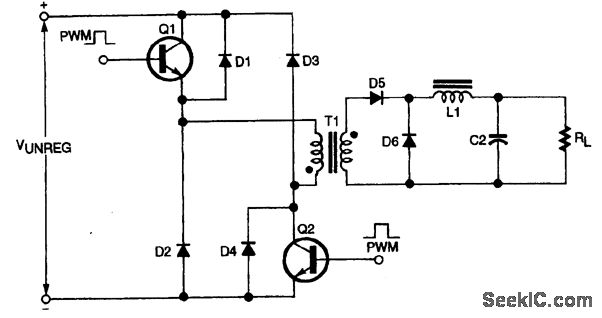

BASIC_HALF_BRIDGE_CONVERTER_CIRCUIT

Published:2009/7/16 22:48:00 Author:Jessie | From:SeekIC

A popular and established switching power-supply topology is the half-bridge converter, The same converter will work from either a 120- or 240- Vac input; it is simply necessary to change terminals. It is cost-effective over the 150- to 500- W range, and offers very good output noise characteristics and excellent transient response.
