BILATERAL_CURRENT_SOURCE

Published:2009/7/14 3:41:00 Author:May | From:SeekIC

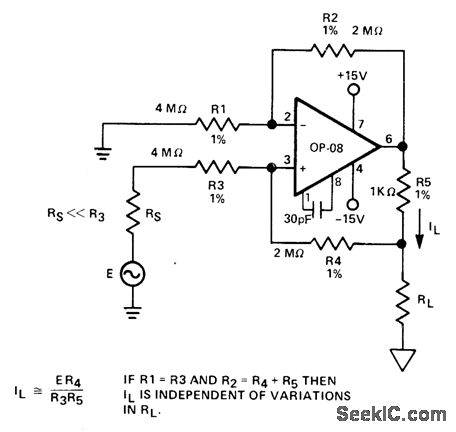

Output current through load is constant within 2% of value related to input voltage and resistor values, regardless of variations in load from 10 to 2000 ohms. Circuit is built around Precision Monolithics OP-08 opamp.- Precision Low Input Current Op Amp, Precision Monolithics, Santa Clara, CA, 1978, OP-08, p 7.
