BLOCKING_OSCILLATOR_SUPPLY

Published:2009/7/14 4:24:00 Author:May | From:SeekIC

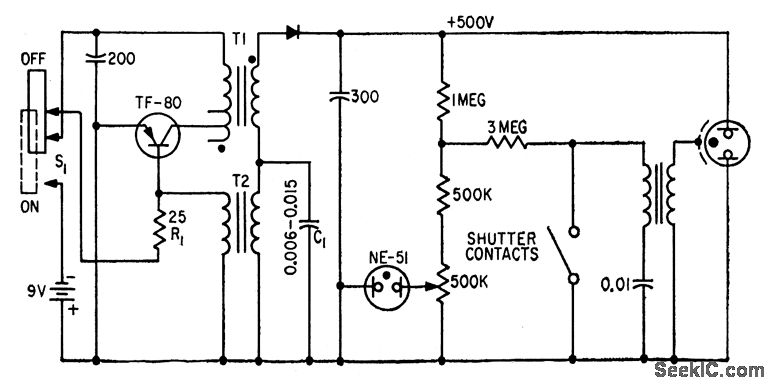

Uses modified blocking oscillator to obtain square wave switching at 4,200 cps. Charges 300-mfd capacitor to 500 v in 5 to 10 sec from 9-v dry cell that can deliver up to 700 Bashes. To start oscillator, S1 momentarily connects R1 to negative side of battery.-H. A. Manoogian, Transistor Photoflash Power Converters, Electronics, 31:35, p 29-31.
