Basic Twin Coil Switch Machine Power Supplies

Published:2013/6/6 20:35:00 Author:muriel | Keyword: Basic Twin Coil, Switch Machine, Power Supplies | From:SeekIC

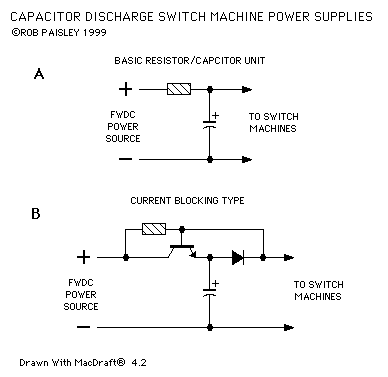

The following diagram shows two basic twin coil switch machine power supplies. Circuit A is the simplest type but suffers from a relatively slow recovery rate. Circuit B is a very popular power supply as it has a very good recovery time. This circuit has a high current surge when the capacitor is charging.
