Basic UPS

Published:2012/11/26 0:52:00 Author:muriel | Keyword: Basic UPS | From:SeekIC

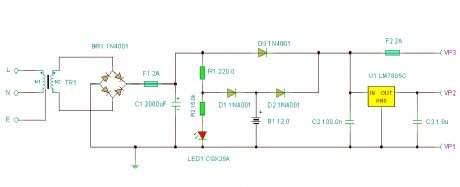

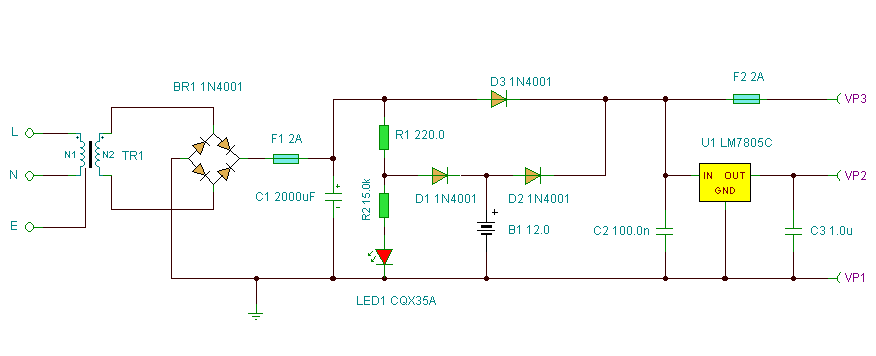

This circuit is a simple form of the commercial UPS, the circuit provides a constant regulated 5 Volt output and an unregulated 12 Volt supply. In the event of electrical supply line failure the battery takes over, with no spikes on the regulated supply.
