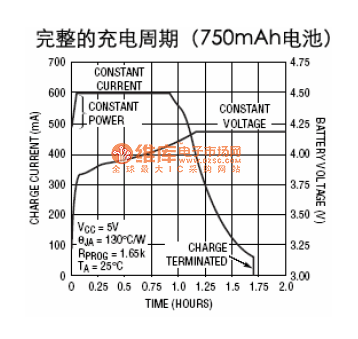

600mA Single lithium battery charging circuit diagram

Published:2011/4/2 4:05:00 Author:Rebekka | Keyword: 600mA Single lithium, battery charging | From:SeekIC

HYM4054 model itself afterLinear Technology's LTC4054 . It is suitable for USB charging. Themaximum charge current is800mA.
