BATTERY_CONDITION_INDICATOR_FOR_12_V_BATTERIES

Published:2009/6/22 22:30:00 Author:May | From:SeekIC

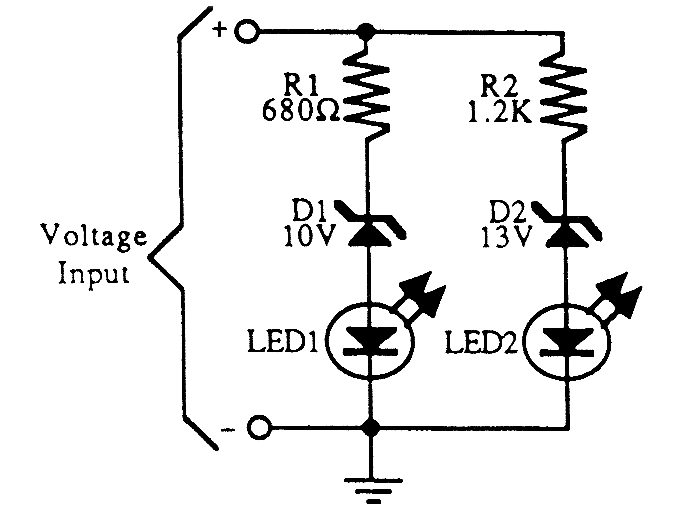

A simple battery condition indicator. Choose the Zener diodes to provide a window for over/un-der voltage indication.
