Battery Charge Current Indicator

Published:2012/9/4 20:56:00 Author:Ecco | Keyword: Battery Charge, Current Indicator | From:SeekIC

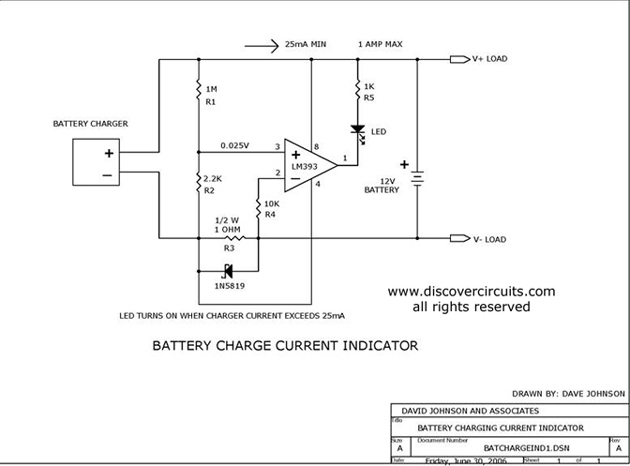

This circuit turns on a LED whenever it detects at least 25ma of battery charge current. Source: discovercircuits
