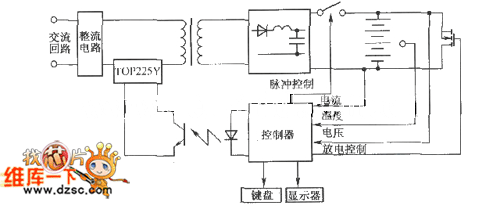

Intelligent charging system schematic block circuit

Published:2011/7/2 3:09:00 Author:John | Keyword: charging system, schematic block | From:SeekIC

The chip is the three-terminal isolated PWM monolithic switching power supply integrated circuit, which is produced by the United States Powergration. It integrates the PWM IC and FET in the same chip, thus occupying all the require functionality of the PWM switching power supply. High-frequency transformer is able to isolate the output termination from the grid completely. This also can achieve the isolated single-chip switching power supply integration of a non-frequency transformer. The entire circuit is with a wide range of output power, low cost, high degree integration and simple circuit design and other advantages.
