MAX1501 charger circuit

Published:2011/7/2 1:50:00 Author:John | Keyword: charger | From:SeekIC

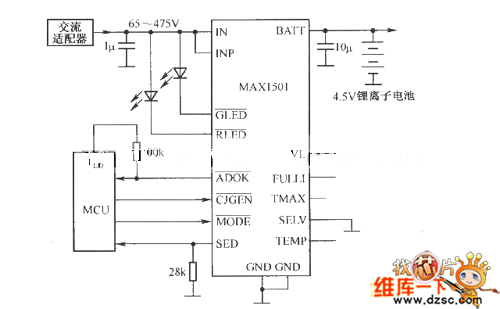

MAX1501 is a new generation of rechargeable chip. MAX1501 is used to simplify the design of the charger. MAX1501 can be set as the single cell Li-Ion battery charging controller and can also be set as charging controller with three nickel cadmium batteries and Nickel metal hydride battery in series. MAX1501 charger circuit is as shown.
